Configurable Attributes | |
Effective Length [in] (0.140 to 144.000) | |
Plunger (see explanation below) | |
Material | |
Heat Treatment | |
Finish | |
Material | |
Heat Treatment | |
Finish |
Quantity |
U.S. Patent No. 6,872,039 & 7,147,420. Foreign Patents Issued
The Quick-Release SLIC Pin is truly one slick pin! SLIC is an acronym for Self Locking Implanted Cotter Pin, and as the name implies, it is a pin and cotter all in one! This one-piece locking clevis pin is cost-saving, fast and secure. It functions as a quick locking pin wherever you need a quick lock function. This revolutionary fastening pin is understandably highly popular and used successfully in a wide-range of applications.
Quick-Release SLIC Pins feature a strong, spring-loaded plunger that functions as an easy insertion ramp. The plunger retracts when inserted, then springs back up when through the joined material. The vertical face at the rear of the plunger prevents backing out and locks the pin into place! This patented design is ideal for limited-space applications where cotter pin or retaining clip access is limited.
SLIC Pins, one piece locking clevis pins, eliminate cotters, bolts and nuts and clips; and do not require tools for use- thereby greatly speeding assembly times! These quick locking pins are well suited for automated assembly; and are easier, safer and faster than standard clevis pins, cotter pins and clips. Whether you choose to call it a SLIC Pin or a slick pin, we’re sure you’ll love it.
Basic Shank Diameter [in] | 3/4 |
Shank Diameter - A | 0.741 to 0.746 |
Head Diameter - B [in] | 0.930 |
Head Height - C [in] | 0.250 |
Chamfer Length - D [in] | 0.115 |
Chamfer Angle [º] | 22 |
Basic Shank Diameter [in] | 3/4 |
Wedge Height (Approx.) - E [in] | 0.083 |
Proprietary | Pivot Point Proprietary Design |
Note | Plating may add, up to, .001" to diameter of pin |

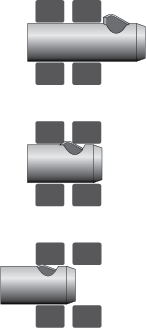

Standard Plunger | Removable Plunger |
Features a more sharply angled top, affording greatest capture height of the plunger. Use for semi-permanent fastening, where the pin is seldom removed. | Features a rounded top, affording easier removal in assemblies with slight gaps when the pin needs to be removed. |
No quantity too small, no quantity too large! We specialize in Personalized Engineered Solutions! We'll work with you to develop the ideal fastener solution to suit your specific application; and we'll provide preliminary prints and samples. Click here to see a brief representation of our custom capabilities.
Send us your sketch and receive a quote. Simply fax it or email it. We can often recommend cost saving alternatives. We offer a diverse range of production capabilities, including screw machining, cold heading, drilling, ball detenting, machining, assembly and more. We love a challenge, so let us help you develop the prefect solution!
